Description

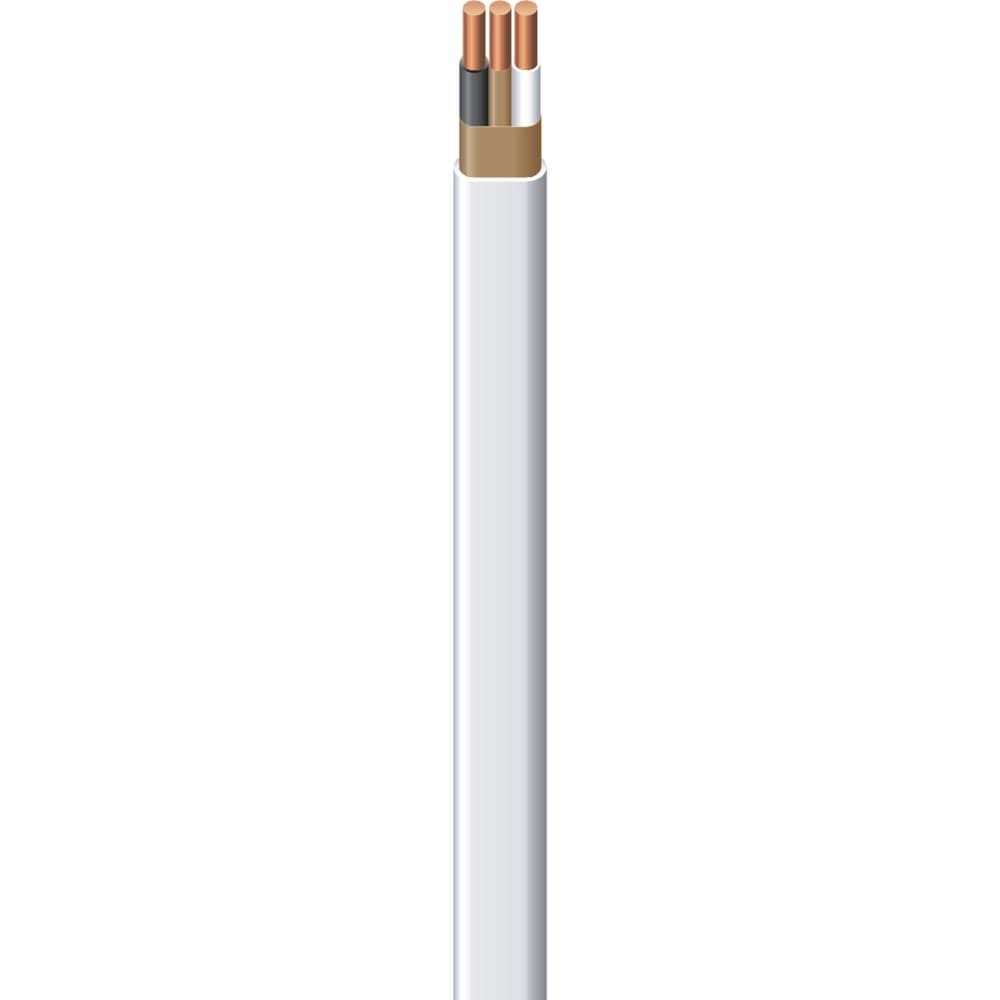

Wire residential indoor branch circuits for outlets, switches and other loads with Southwire Romex SIMpull Type NM-B Cable. Slik quik jacket allows for 50 percent reduction in pulling force for easier installation. May be run in air voids of masonry block or tile walls not subject to excessive moisture and dampness.Romex SIMPULL NM-B ResidentialNM-B - Non Metallic Type B600 VoltsFor Dry Locations Only90C Heat CapacityWhite jacket2 conductor design14 AWG19 mils insulation and jacket thickness57 lb. per 1000' per lb.SHOW MORE
Specifications
Brand Name: Southwire
Product Type: Wire
Amp Rating: 15 ampere
Brand Name: Southwire
Cable or Wire Type: Romex Type NM-B WG Non-Metallic
Color: WHITE
Conductor Gauge: 14 Gauge
Conductor Material: Copper
Direct Burial: No
Flame Retardant: Yes
Ground Material: Copper
Insulation Material: PVC: Thermoplastic
Jacket Material: Nylon
Number of Conductors: 2
Stranded or Solid: Solid
Temperature Rating: 90
UL Listed: Yes
Voltage Rating: 600 volt
Wet Location Use: No
Wire Length: 25 foot
Gauge/Conductors: 14/2
Indoor or Outdoor: Indoor
