Description

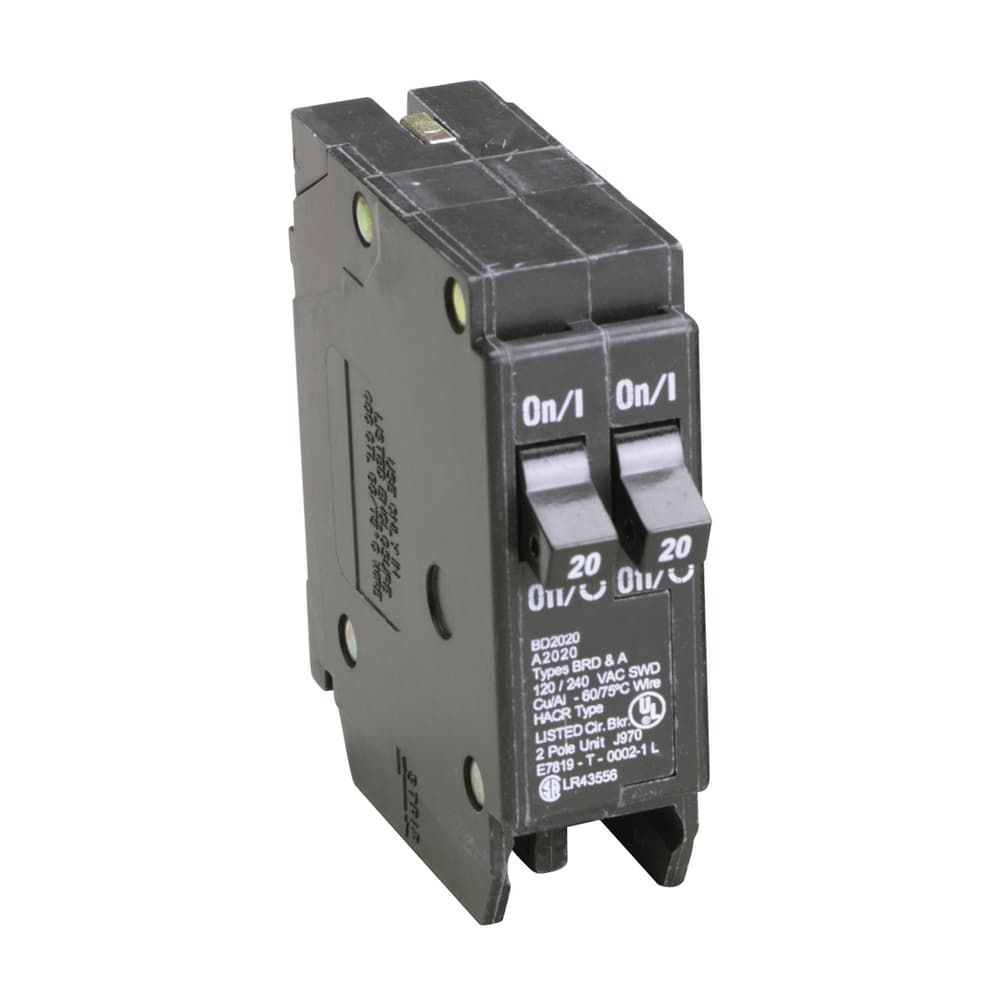

Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Cutler-Hammer 20/20 amp 1 inch duplex type BD circuit breaker is also known as tandem or circuit limiting breaker. This style of breaker will only fit into load center bus stabs that are notched to accommodate the rejection clip built into the bus bar contact on the breaker. This is a code requirement that limits the number of breakers that can be installed into a load center.Twin 20/20Heating and AC Rated (HACR)Circuit Limiting for notched bus barsSwitching Duty Rated1" FormatSHOW MORE
Specifications
Brand Name: Eaton
Sub Brand: Cutler-Hammer
Product Type: Circuit Breaker
Amps: 20/20 ampere
Brand Name: Eaton
CSA LIsted: Yes
Circuit Protection Type: Tandem
Depth: 3 inch
Height: 3 inch
Mounting Type: Plug-In
Number of Poles: 2-Pole
Packaging Type: Bulk
Product Series: Type BD
Sub Brand: Cutler-Hammer
UL Listed: Yes
Volts: 120/240 volt
Width: 1 inch
Indoor or Outdoor: Indoor
