Description

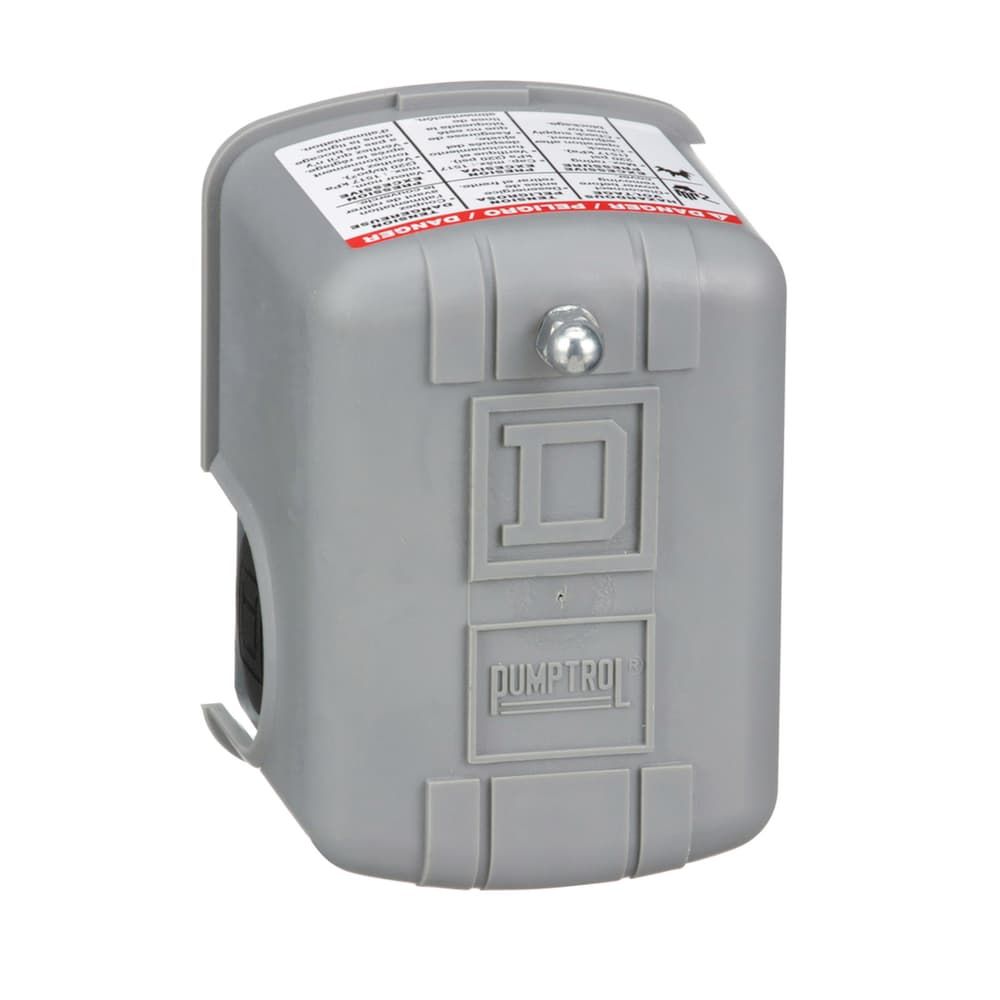

This Pumptrol FSG2J24BP electromechanical pressure switch is the most trusted brand in residential, commercial and industrial pumping applications. For over 75 years, Square D pressure switches continue to meet the needs of customers. The FSG2J24BP has a 40 PSI to 60 PSI pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4 inch NPSF internal fluid connection and screw clamp terminals. The switch works with a 1. 5 HP or less pump. The adjustable differential range is 15 PSI to 30 PSI and the cut out range is 20 PSI to 65 PSI. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified.Class 9013Diaphragm actuatedAdjustable cut in/out and differential.Suitable for jet pumps, submersible pumps and reciprocating pumpsStandard action contactsSingle and 3 phase ratedCan be mounted in any positionConduit plug includedElectrical Life - 100,000 operationsCaptive Cover Screw doesnt fall offSHOW MORE
Specifications
Brand Name: Telemecanique
Sub Brand: Pumptrol
Product Type: Pressure Switch
Brand Name: Telemecanique
CSA LIsted: Yes
Maximum Pressure: 60 pound per square inch
Maximum Temperature: 158 degree Fahrenheit
Minimum Pressure: 40 pound per square inch
Minimum Temperature: 32 degree Fahrenheit
Sub Brand: Pumptrol
Thread Type: NPT
UL Listed: Yes
Connection Material: Stainless Steel
