Description

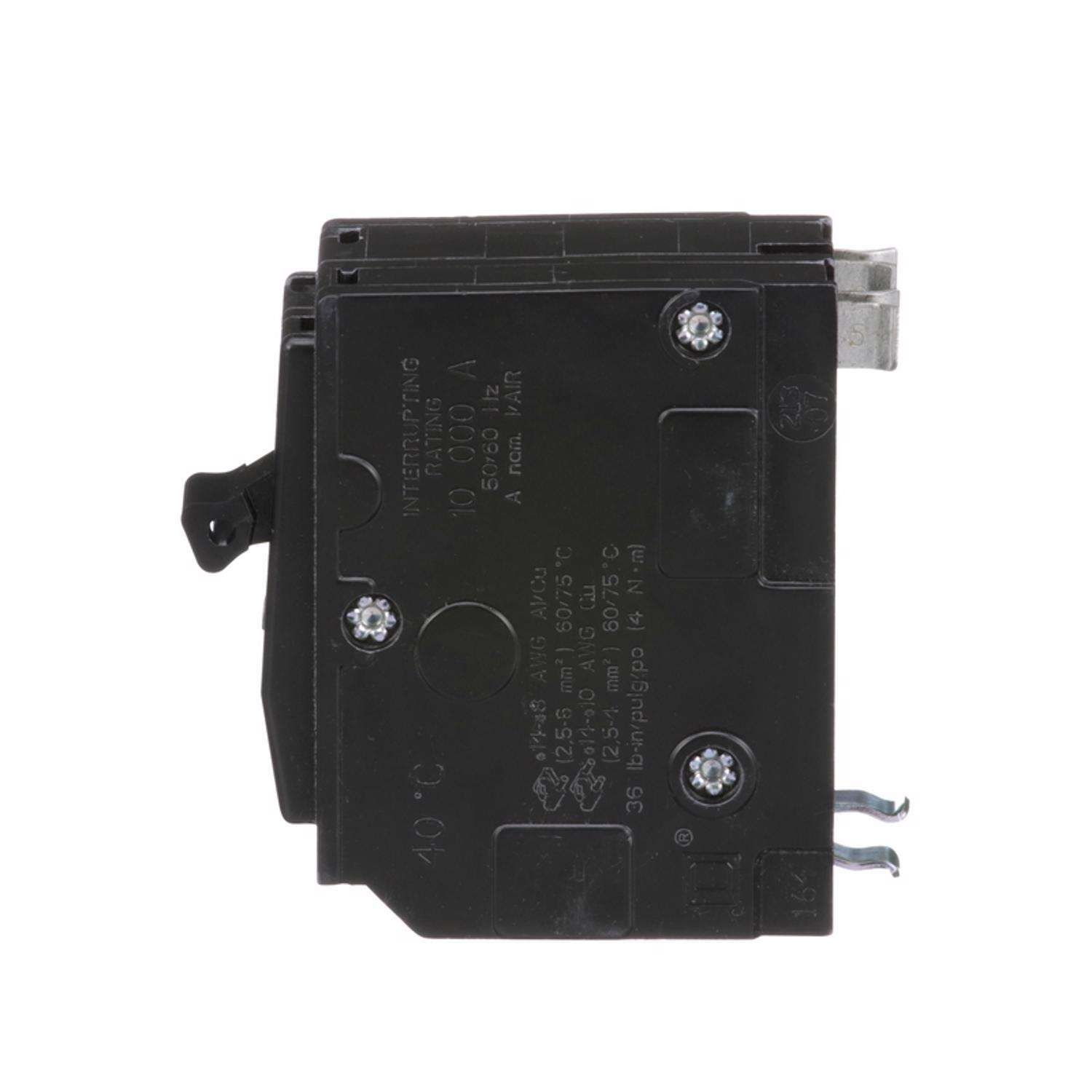

The Square D by Schneider electric QO 20 amp Two-pole circuit breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 air. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between in off and in on and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders and electrical contractors first choice in electrical protection.Double Pole3/4" FormatRed Visi-Trip features indicates tripped breakerTwo-pole common tripCompatible with QO load centers and CSED devicesSHOW MORE
Specifications
Brand Name: Square D
Sub Brand: QO
Product Type: Circuit Breaker
Amps: 20 ampere
Brand Name: Square D
CSA LIsted: Yes
Circuit Protection Type: Plug In
Depth: 2.92 inch
Height: 3.5 inch
Mounting Type: Plug-In
Number of Poles: 2-Pole
Packaging Type: Sleeve
Product Series: QO
Sub Brand: QO
UL Listed: Yes
Volts: 120/240 volt
Width: 1.48 inch
Indoor or Outdoor: Indoor
